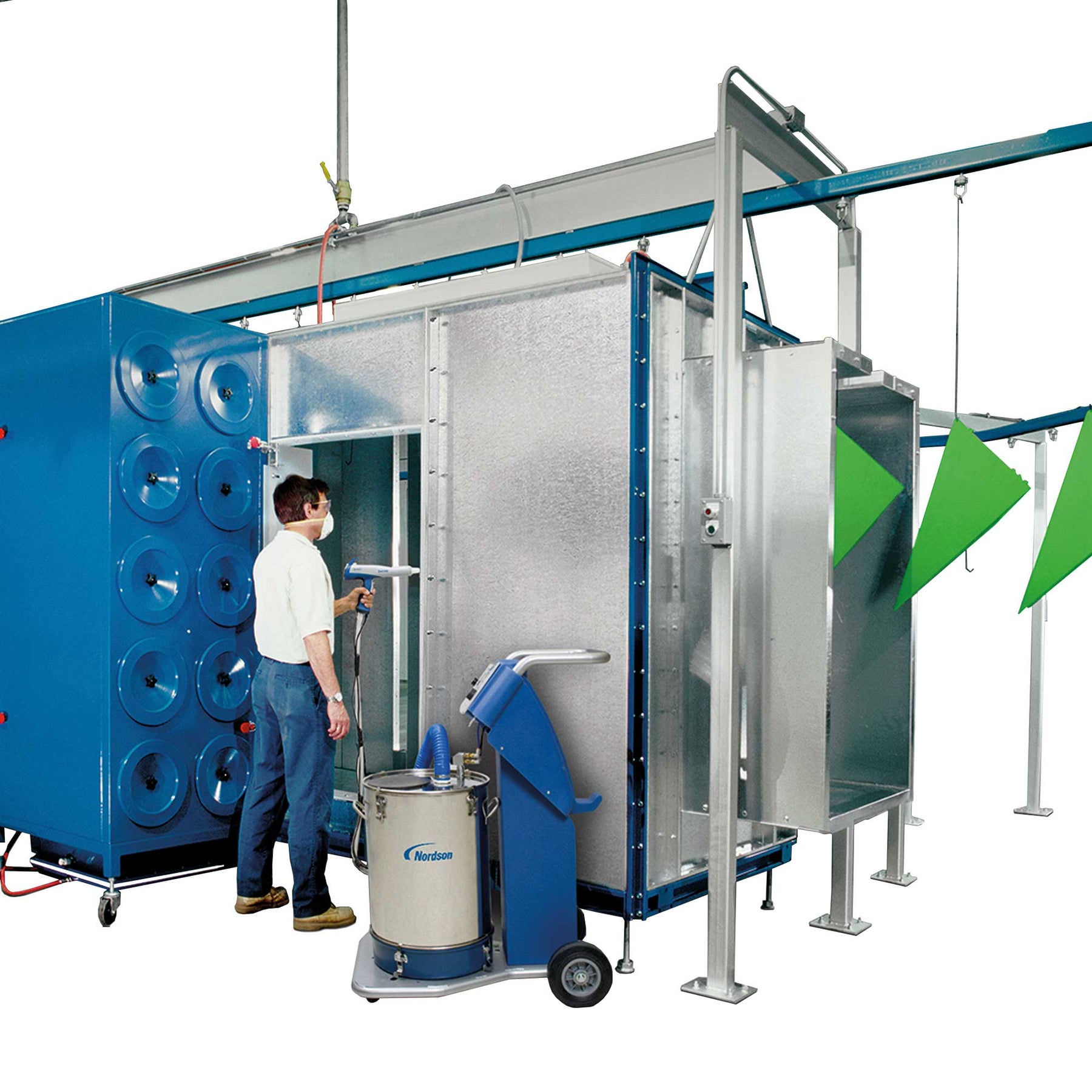

Vantage RCM - Powder Spray Booth

Value. Flexibility. Performance

Innovative design adds features and functionality in a compact and easy to install, economical  powder booth with color-change capability and fluidized reclaim for continuous production operations.

Fast, easy installation

With the Vantage RCM booth, you can virtually take delivery one day and start powder coating the next. Completely pre-assembled and tested before shipment, the booth and removable filter/collector module are simply rolled off delivery truck and into position. The booth’s special transport casters are then removed and replaced with either leveling feet or optional roll-on/off casters, and the filter module is rolled into place, leveled and latched to the booth. The conveyor slot baffles are then attached, the electrical and pneumatic connections made, and you are ready for production.

Fast, easy color change

The removable rollaway filter/collector module is easily moved  off-line for convenient access and storage, while another collector is rolled into place with a different color powder.

Durable, quality construction

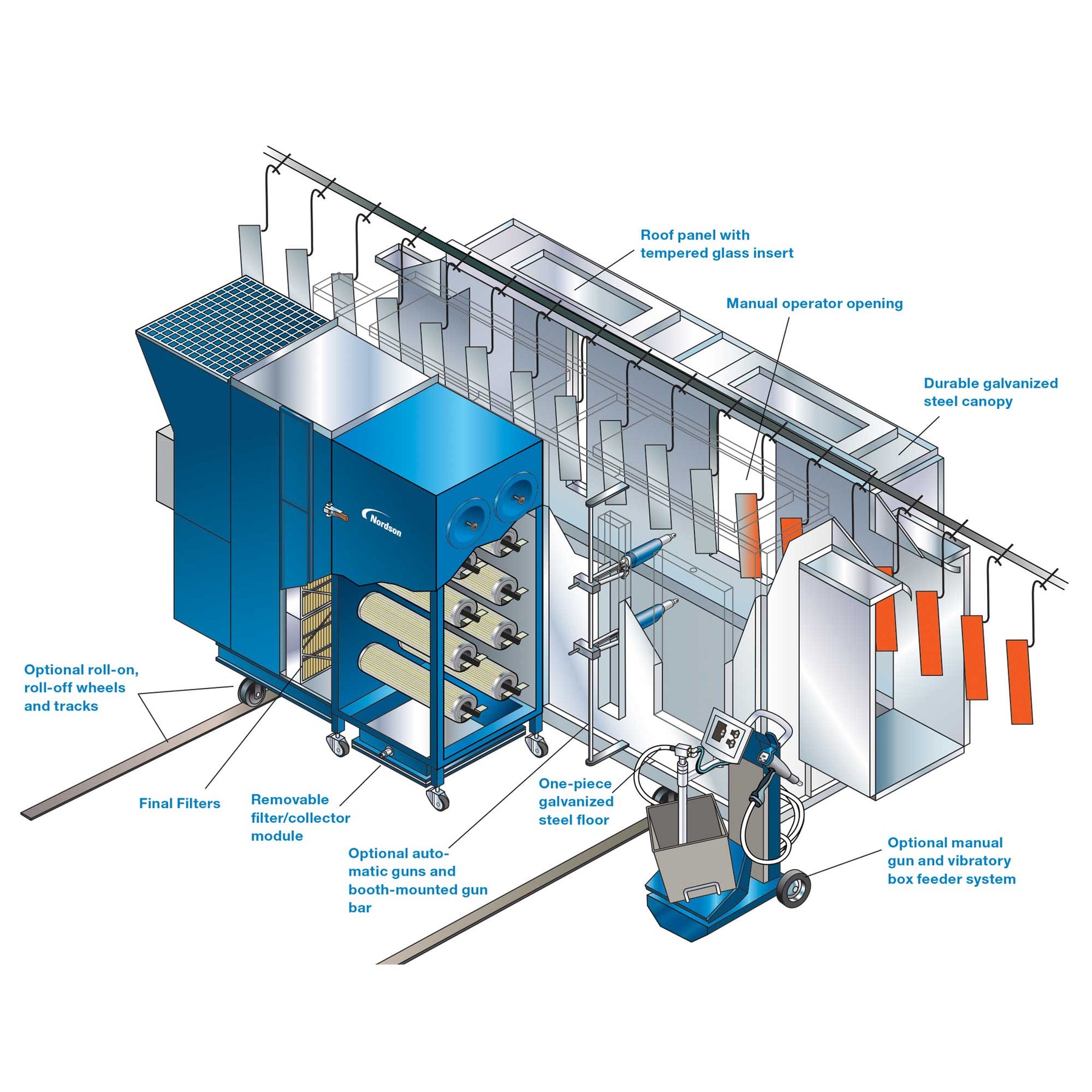

The Vantage RCM booth offers superior construction, stability,  fit and finish compared to competitive models. The booth  framework, fan and final filter sections, and filter/collector  module are powder coated, while the booth floor features an exceptionally sturdy plywood base covered with seamless,  high-quality galvanized steel. The booth canopy is also rugged, high-quality galvanized steel. The roof includes tempered glass panels, and comes with the framework ready to accept optional, “rated” fluorescent light fixtures. The booth canopy and roof panels are also available in optional stainless steel, polypropylene and clear Lexan® materials.

Features and benefits

• Quick color change - removable, roll away filter/collector module speeds color changes for increased production.
• Fast, easy installation - booth and filter/collector module simply roll off delivery truck and into position, for minimal final installation and set-up.
• Rugged, high-quality construction and finish - powder coated steel structure with high-quality galvanized canopy
• Modular wall-panel design - standard panels enable fast, easy replacement or spray gun station reconfiguring, if necessary.
• Higher CFM capacity - standard 8,000 CFM model permits use of more guns and still provides ample capacity to contain powder over a wide range of applications. An 11,000 CFM model is also available for custom- engineered powder systems.

• Main control panel meets UL 508 via CSA NRTL/C -assures proper operating safety.
• Low-profile booth base - eliminates need for operator platforms.

• Polyester cartridge filters - provide longer life, and minimize powder waste for better material utilization.

• Optional roll-on/off feature - provides capability to move booth on- and off-line to meet specific production requirements.

• Pump direct from module option - combined with optional pumps, supplies powder to manual guns without an external hopper.
• Several optional booth enhancements available - rated light fixtures, flame detection equipment (required for automatic spray gun operation), additional filter/collector modules and a one-step operator platform are available for use with the Vantage RCM booth to meet specific application needs.
