Pulsarlube
Pulsarlube BT
Enhanced User-Friendliness
Easy to monitor nearby lubricators within a close proximity of your mobile (proximity pairing)
Possible to change mode settings while lubricators are in operation
Integrated DB Management
Easy to share DB between mobile device and server
Safe Working Environment
Remotely monitor lubricator status in hazardous and inaccessible work areas via mobile App in close proximity
Service Pack
Substantial savings from the use of replaceable grease pouches and battery packs

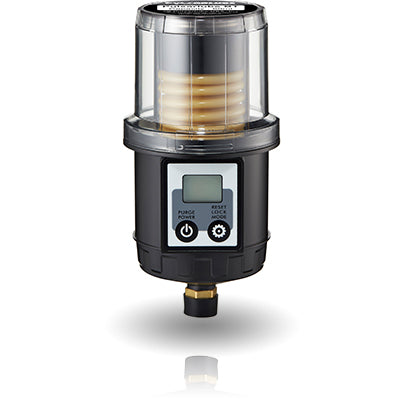

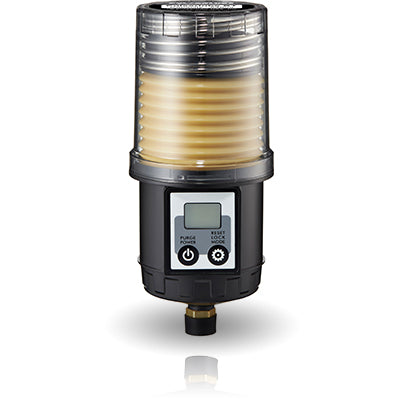

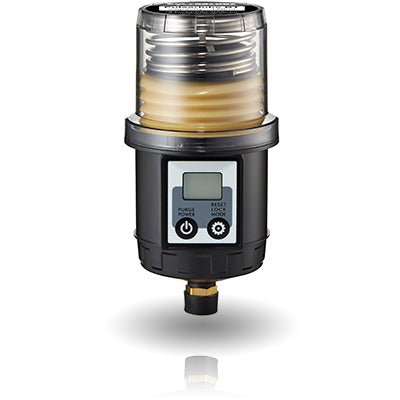

The Pulsarlube BT Bluetooth-Enabled Automatic Electromechanical Lubricator.
The Pulsarlube BT is a Bluetooth-enabled automatic lubricator that could be monitored and controlled via an app on a mobile device in Bluetooth range (5-20m), without physical access to the lubricators.
Lubricators will be recognized in the app as long as they are in Bluetooth detection range so finding lubricators, monitoring their status, and changing settings will be simple and convenient. The data in the mobile app is shared with our web application server and can be downloaded in .csv or .txt format for optimal monitoring.
With BLE (Bluetooth Low Energy) technology applied, there is low power consumption from the Bluetooth module and the lubricator can operate reliably even though a battery pack is used for power. The IP65 rating allows outdoor installations with protection against dust and water spray.
By incorporating Bluetooth technology, The Pulsarlube BT has been developed to meet your lubrication needs with a technological convenience never before offered.
Specs
60ml / 120ml / 240ml (pre-set)
DC 4.5V Battery Pack
30-60bar (435-870psi)
Standard Alkaline Battery : -15˚C - 60˚C (5 ˚F - 140˚F)
Optional Lithium Battery : -40˚C - 60˚C (-40 ˚F - 140˚F)
1 - 12 month
Max. 6m (20ft) with Ø6 tube
Max. 3m (10ft) with Ø6 tube (Up to 8 lube points)
5 - 20m depending on installation environment
Bluetooth 4.1 (class 2)
10 Units/Case
CE / KC / FCC / RCM / NCC / SRRC / SIG / ICASA / J-MIC / NBTC
