Griswold
850 Series Industrial Pumps
Griswold 850 Series Centrifugal Pumps have been specifically designed for versatility. Thanks to their efficient performance, extensive features, long life and easy maintenance, 850 Series pumps are ideal for use in a wide variety of water-pumping applications.
Key Specifications
- Max Flow Rate: 3,850 gpm (874 m³/hr)
- Max Head: 430 ft (131 m)
- Max Temperature: 120°F (49°C)
- Available Materials: Iron with Aluminum Bronze
Features
- NSF® 50 and NSF® 61 Certified
- Heavy-duty, robust design
- Flanged connections in accordance with ASME B16.1
- Single-piece enclosed impellers
- Back pull-out design for ease of maintenance
- Component mechanical seals
- Iron liquid path
- Renewable lead-free bronze wearing rings
- Close-coupled or frame-mounted options
- Close-coupled NEMA electric motors available
- Frame-mounted with coupling to: electric motors, engines, steam turbines, or belt-driven options
- Base mounted options
- Epoxy-coated interior (optional feature)
Performance Coverage

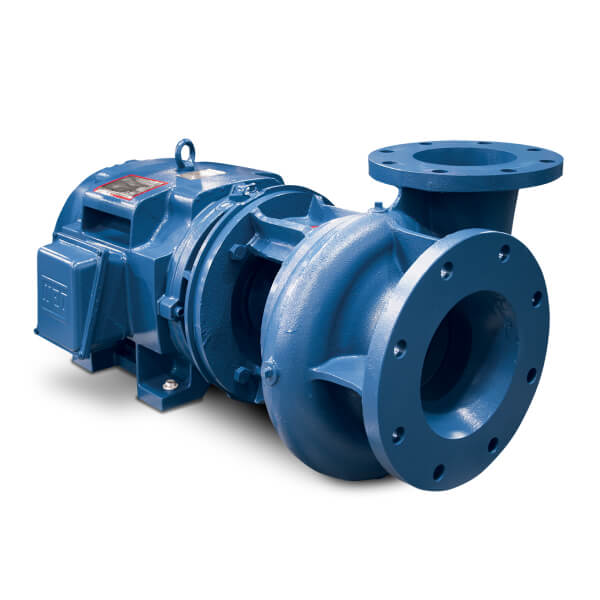

Close-Coupled or Frame-Mounted Configurations
850 Series pumps are provided with NEMA JM or JP close-coupled motors. As an alternative, Griswold offers flexible couplings to electric motors, including open drip-proof, totally-enclosed and explosion-proof motors, or engine, steam turbine, and belt-driven options.
Seal Options
While our standard mechanical seal is comprised of carbon/ceramic/Buna, we also offer alternatives for more abrasive/corrosive and high-temperature applications.
Coating Options and Baseplate Mounting Systems
For corrosion protection, 850 Series pumps can be coated on the interior and/or exterior with 3M™ Scotchkote™ 134 Fusion Bonded Epoxy. Griswold also offers a complete range of pre-engineered channeled steel baseplates to reduce stress and vibration.
