Graco

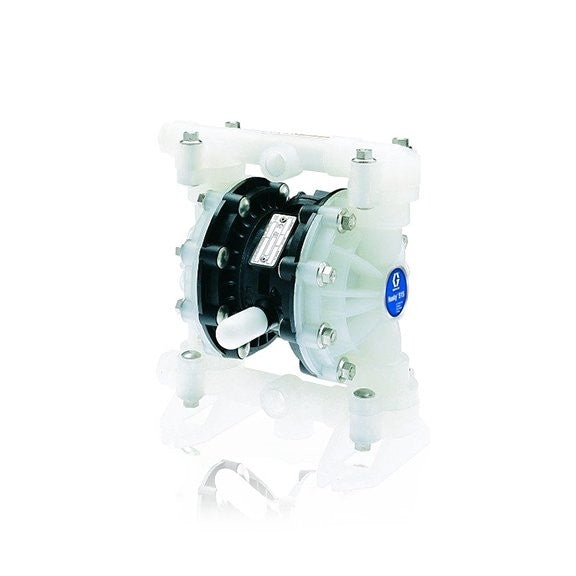

D52988 - Husky 515 Double Diaphragm Pump 0.5", 15 gpm
Quantity:
Pickup available at Toronto
Usually ready in 24 hours
D52988 - Husky 515 Double Diaphragm Pump 0.5", 15 gpm
Toronto
Pickup available, usually ready in 24 hours
291 Clements Road West
Ajax ON L1S 3W7
Canada
Montreal
Pickup available, usually ready in 24 hours
9605 Rue Ignace
Brossard QC J4Y 2P3
Canada
Calgary
Pickup available, usually ready in 24 hours
1165 J 44th Avenue Southeast
Calgary AB T2G 4X4
Canada
Vancouver
Pickup available, usually ready in 24 hours
68 Schooner Street
Coquitlam BC V3B 7B1
Canada
Edmonton
Pickup available, usually ready in 24 hours
7503 Girard Road Northwest
Edmonton AB T6B 2H2
Canada
Winnipeg
Pickup available, usually ready in 24 hours
1153 Sanford Street
Winnipeg MB R3E 3A1
Canada
Polypropylene
Fluid Section Material
1/2 Inch, 15 gpm (13mm, 57 lpm)
Pump Inlet/Outlet Size
Polypropylene Standard Air Valve (NPT)
Center Section
Polypropylene Standard Porting (NPT)
Porting
Polypropylene
Seats
FKM (Flouroeleastomer)
Balls
FKM (Flouroeleastomer)
Diaphragms
PTFE
Manifold O-Rings
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve for smooth and rapid changeover, along with center and end porting options. Additionally, it boasts a bolt-through fluid cover design, ensuring no leaks and enhancing safety and reliability. This pump also offers numerous advantages such as no mechanical seals to cause fluid leaks or failures, quiet operation at less than 85 dBa with remote muffler capability for lower noise levels, easy-to-service air valve and ball checks, and the ability to operate on as little as 20 psi (1.4 bar, 0.14 MPa). With a split manifold option to pump multiple fluids without mixing, delivery of up to 15 gpm (56.7 lpm), and a reliable air valve for years of dependable performance, the Husky 515 is an exceptional choice for various applications.
Configuration Number
Configuration Number
- 515P-P01AP3PPFKFKPT
- Air Operated
- No Certification
