In the high-stakes world of hydroelectric power generation, unplanned downtime isn't just an inconvenience—it's a significant financial liability. Among the critical components requiring consistent maintenance in hydro facilities, sluice gates and penstocks stand out as particularly challenging. These water-control mechanisms operate in harsh, often remote environments where manual lubrication is both challenging and dangerous. As we move further into 2025, automated lubrication systems (ALS) have emerged as a game-changing solution for maintaining these crucial components while minimizing operational disruptions.

The Critical Role of Sluice Gates and Penstocks

Sluice gates and penstocks serve as the primary water control mechanisms in hydroelectric facilities. These massive components regulate water flow from reservoirs to turbines, operating under immense pressure and often in submerged or high-moisture environments. Their reliable operation is non-negotiable—when they fail, the entire generation process grinds to a halt.

The challenges of maintaining these components include:

• Difficult access points: often requiring specialized equipment or safety procedures
• Continuous exposure to water: and potential contaminants
• High mechanical loads: creating significant bearing stress
• Remote locations: making regular manual maintenance impractical
• Seasonal temperature variations: affecting lubricant performance

Traditional manual lubrication approaches simply can't address these challenges effectively, leading to inconsistent maintenance, increased wear, and ultimately, costly downtime.

The True Cost of Downtime in Hydroelectric Facilities

When a hydroelectric plant experiences unplanned downtime due to lubrication-related failures in sluice gates or penstocks, the financial impact extends far beyond repair costs. Consider these sobering realities:

• Lost generation revenue (often thousands of dollars per hour)
• Emergency repair premiums and expedited parts shipping
• Potential grid stability issues and regulatory penalties
• Environmental compliance concerns if water flow is improperly managed
• Cascading effects on downstream water management systems

Industry studies suggest that approximately 50% of premature bearing failures—a common issue in sluice gates and penstocks—stem from lubrication problems. These include under or over-lubrication, inconsistent application intervals, contamination issues, and using incorrect lubricant types.

Automated Lubrication: The Strategic Solution

Graco's automated lubrication systems offer a comprehensive solution to these challenges by delivering precise amounts of lubricant at programmed intervals—even in the most demanding environments. For sluice gates and penstocks specifically, these systems provide several critical advantages:

1. Remote Monitoring via GLC-X Controllers

The Graco GLC-X controller represents a significant advancement in remote lubrication management. With its IP69K rating—protecting against high-pressure water jets—this controller can be installed in close proximity to water-control mechanisms while maintaining reliable operation.

• Bluetooth connectivity: allowing maintenance teams to monitor lubrication status without physically accessing difficult locations
• Real-time system reporting: of lubrication intervals, pressure limits, and lubricant levels
• Customizable alarm functions: alerting maintenance personnel to potential issues before they cause failures
• Integration capabilities: with plant SCADA systems via Modbus RTU protocol
• Mobile app support: through the Auto Lube™ app for convenient field adjustments

The controller's ability to operate in temperatures from -22°F to 158°F (-30°C to 70°C) makes it suitable for hydroelectric facilities in virtually any climate.

2. High-Pressure Delivery Systems for Challenging Applications

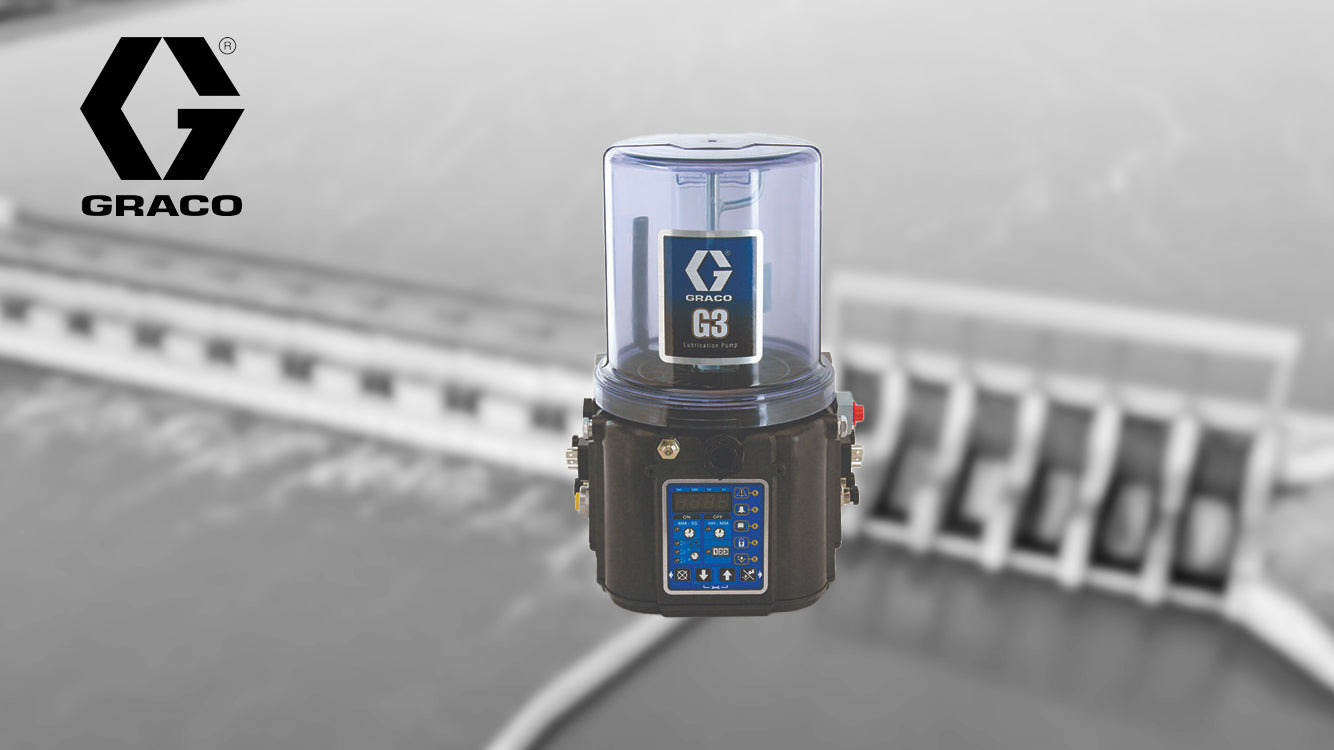

Sluice gates and penstocks often require lubricant delivery through long supply lines or restrictive passages. Graco's pumping systems, such as the Compact Dyna-Star (CDS) and G3 Electric Lubrication Pump, deliver exceptional pressure capabilities:

• Compact Dyna-Star: Up to 3,500 psi (241 bar) working pressure
• G3 Electric Lubrication Pump: Up to 5,100 psi (352 bar) capability

This high-pressure performance ensures that NLGI #2 grease reaches critical bearing points without separation or air entrapment, even in the most challenging installations.

3. Environmental Resilience for Water-Adjacent Applications

Hydroelectric components operate in perpetually wet conditions. Graco's lubrication systems are engineered specifically for these environments:

• IP69K-rated components: protecting against water ingress
• Corrosion-resistant materials: for extended service life
• Operational capability in extreme temperatures: (-40°F to 149°F / -40°C to 65°C)
• Sealed systems: preventing contamination of both the lubricant and the surrounding environment

These features ensure reliable operation even when installed near spillways, draft tubes, or other high-moisture areas.

Implementation Strategy for Hydroelectric Facilities

Implementing an automated lubrication system for sluice gates and penstocks requires careful planning and consideration of site-specific factors. Here's a strategic approach:

1. System Assessment and Design

• Map all lubrication points on sluice gates and penstocks
• Determine optimal lubricant types based on operating conditions
• Calculate required lubricant volumes and application frequencies
• Identify potential installation challenges (access, power availability, environmental factors)
• Select appropriate system components based on these requirements

2. Component Selection

• Pump Selection: For remote or difficult-to-access locations, consider the Compact Dyna-Star for its combination of high pressure and compact footprint
• Controller: The GLC-X controller with Bluetooth capability is ideal for remote monitoring
• Distribution System: Select between series progressive systems (for deterministic delivery) or single-line parallel systems (for simpler installation)
• Reservoir Size: Choose from 2L to 20L options based on application requirements and service intervals

3. Installation Considerations

• Position reservoirs and pumps in accessible locations for refilling and maintenance
• Protect supply lines from potential physical damage
• Ensure proper electrical connections and protection for control systems
• Consider heated reservoir options for facilities in cold climates
• Install pressure relief valves to protect against over-pressurization

4. Monitoring and Maintenance Protocol

• Establish regular inspection schedules for the lubrication system itself
• Utilize the Auto Lube™ app to track system performance and lubricant consumption
• Train maintenance personnel on system operation and troubleshooting
• Maintain adequate lubricant inventory based on consumption data
• Document system performance to identify opportunities for optimization

ROI and Business Case for Automated Lubrication

The investment in automated lubrication systems delivers compelling returns for hydroelectric facilities:

• Reduced Maintenance Costs: Automated systems typically reduce grease consumption by 25-40% compared to manual methods
• Extended Component Life: Consistent lubrication can double or triple the service life of bearings and other mechanical components
• Decreased Labour Requirements: Elimination of manual lubrication tasks frees maintenance personnel for other critical activities
• Improved Safety: Reduced need for personnel to access difficult or dangerous locations
• Minimized Unplanned Downtime: Proactive maintenance approach prevents catastrophic failures

Most hydroelectric facilities implementing automated lubrication for sluice gates and penstocks report a return on investment within 12-18 months, primarily through reduced maintenance costs and avoided downtime.

Conclusion

In today's competitive energy landscape, hydroelectric facilities cannot afford the operational and financial impacts of unplanned downtime. By implementing Graco's automated lubrication systems for critical water-control mechanisms like sluice gates and penstocks, operators can significantly enhance reliability while reducing maintenance costs and safety risks.

The combination of remote monitoring capabilities through the GLC-X controller, high-pressure delivery systems, and environmental resilience makes these systems particularly well-suited to the unique challenges of hydroelectric applications. As we continue through 2025, this technology represents not just a maintenance improvement but a strategic advantage for forward-thinking hydroelectric operators.

At HMFT, we specialize in designing and implementing custom automated lubrication solutions for the hydroelectric industry. Contact us today to learn how we can help you reduce downtime and optimize the performance of your facility's critical water-control mechanisms.

FAQ

Q: How often does an automated lubrication system need to be refilled?

A: Refill intervals depend on reservoir size and application requirements, but most systems for sluice gates and penstocks can operate for 3-6 months between refills when properly sized.

Q: Can automated lubrication systems operate in freezing temperatures?

A: Yes, Graco systems like the G3 and Compact Dyna-Star can operate in temperatures as low as -40°F (-40°C) when equipped with optional reservoir heaters.

Q: How difficult is it to retrofit existing sluice gates and penstocks with automated lubrication?

A: Most existing equipment can be retrofitted with minimal modifications. The flexible design of Graco systems allows for customization to fit virtually any application.

Q: Are these systems environmentally safe for use near water?

A: Yes, properly designed systems use biodegradable lubricants and sealed delivery mechanisms to prevent environmental contamination.

Q: What kind of monitoring capabilities do these systems offer?

A: The GLC-X controller provides comprehensive monitoring, including pressure tracking, lubricant levels, cycle counts, and fault detection—all accessible remotely via Bluetooth and the Auto Lube™ app.

Q: How do automated systems prevent over-lubrication?

A: These systems deliver precisely measured amounts of lubricant at programmed intervals, eliminating the feast-or-famine approach common with manual lubrication.

Q: What is the typical payback period for installing an automated lubrication system?

A: Most hydroelectric facilities see a return on investment within 12-18 months through reduced maintenance costs, extended component life, and avoided downtime.
