GFS
Industrial Paint Mix Room
Quantité:

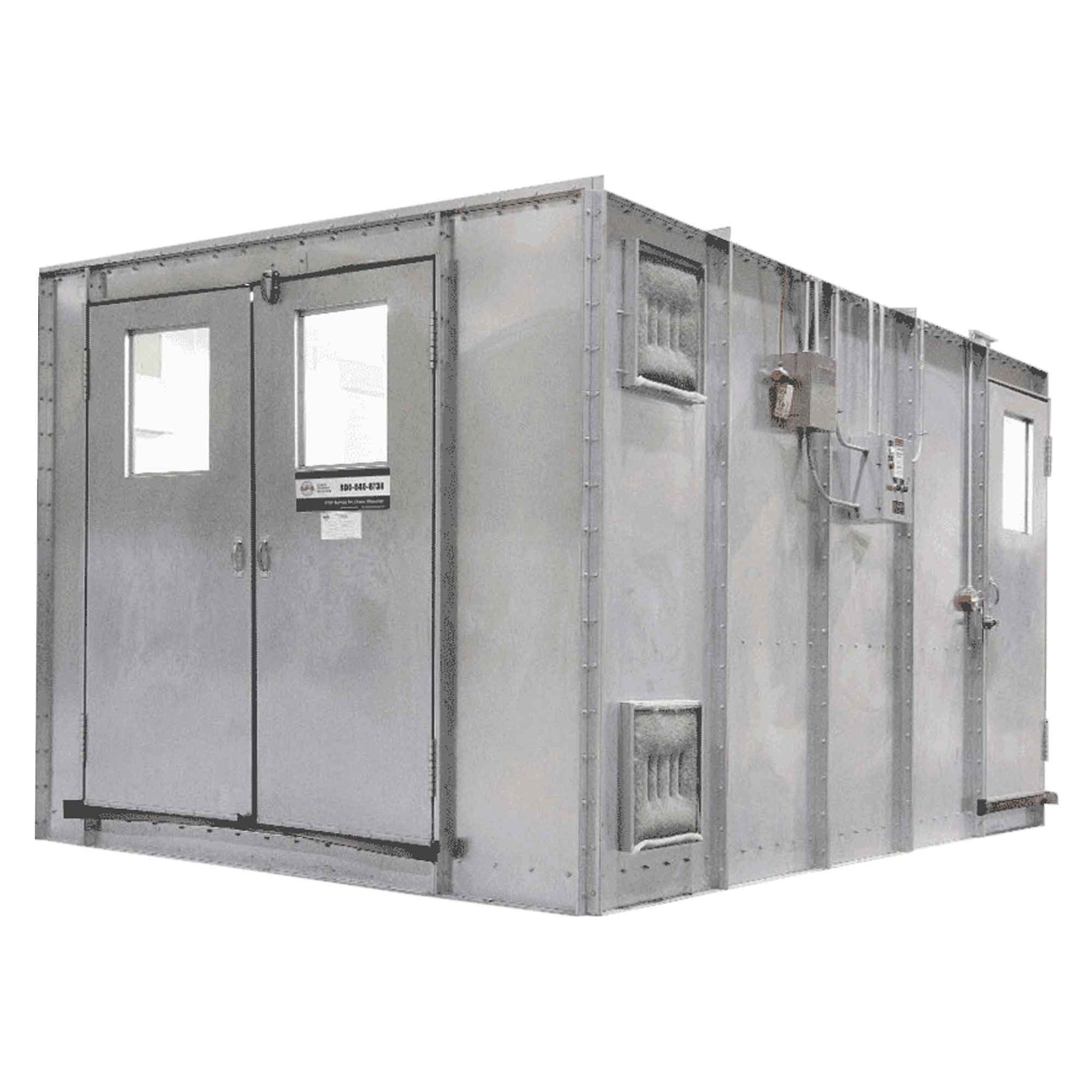

The Industrial Paint Mix Room from Global Finishing Solutions® offers a safe and controlled environment for paint mixing. Made from 18-gauge galvanized or pre-coated white sheet steel, the walls are durable and easy to assemble. The built-in 4-inch-deep containment base captures spills, providing convenience and peace of mind.
Industrial Paint Mix Room Product Info
Features
- Before entering the GFS Industrial Paint Mix Room, fresh air flows through high-efficiency filters to remove dirt and dust contaminants. Air flows continuously through the enclosure and into the exhaust plenum, helping to protect personnel from harmful vapors.
- Pre-punched panels with nut-and-bolt assembly take the guesswork out of installing the GFS Industrial Paint Mix Room, in addition to providing more structural integrity.
- GFS Industrial Paint Mix Rooms are fully ETL and ETL-C listed to meet all applicable industry safety and performance requirements, and facilitate successful inspections.
The amount of flammable or combustible liquid stored in paint mix rooms must be within the following limits, per NFPA 33:
- Paint mix rooms within 6 feet of the spray area may contain up to 2 gallons per square foot of enclosure floor area, but the combined quantities of liquids in the spray area and mix room shall not exceed 120 gallons
- Paint mix rooms farther than 6 feet from the spray area may contain up to 2 gallons per square foot of enclosure floor area, but shall not exceed 300 gallons
- If more than one paint mix room is installed, the total quantity of liquids shall not exceed the amounts outlined above
- Personnel door with observation window
- High-efficiency, T8 LED light fixture(s)
- 4-inch-deep containment base for potential spills
- 1/2 hp TEFC motor
- Heavy-duty exhaust fan
- 3-by-5-foot PIG Grippy Mix Room Mat
- Control panel
- Intake fan (for pressurization)
- Exhaust ductwork
- Booth connection vestibule
- Most commonly used for Industrial & Manufacturing
