Grundfos MTH Immersible Pumps
Quantité:

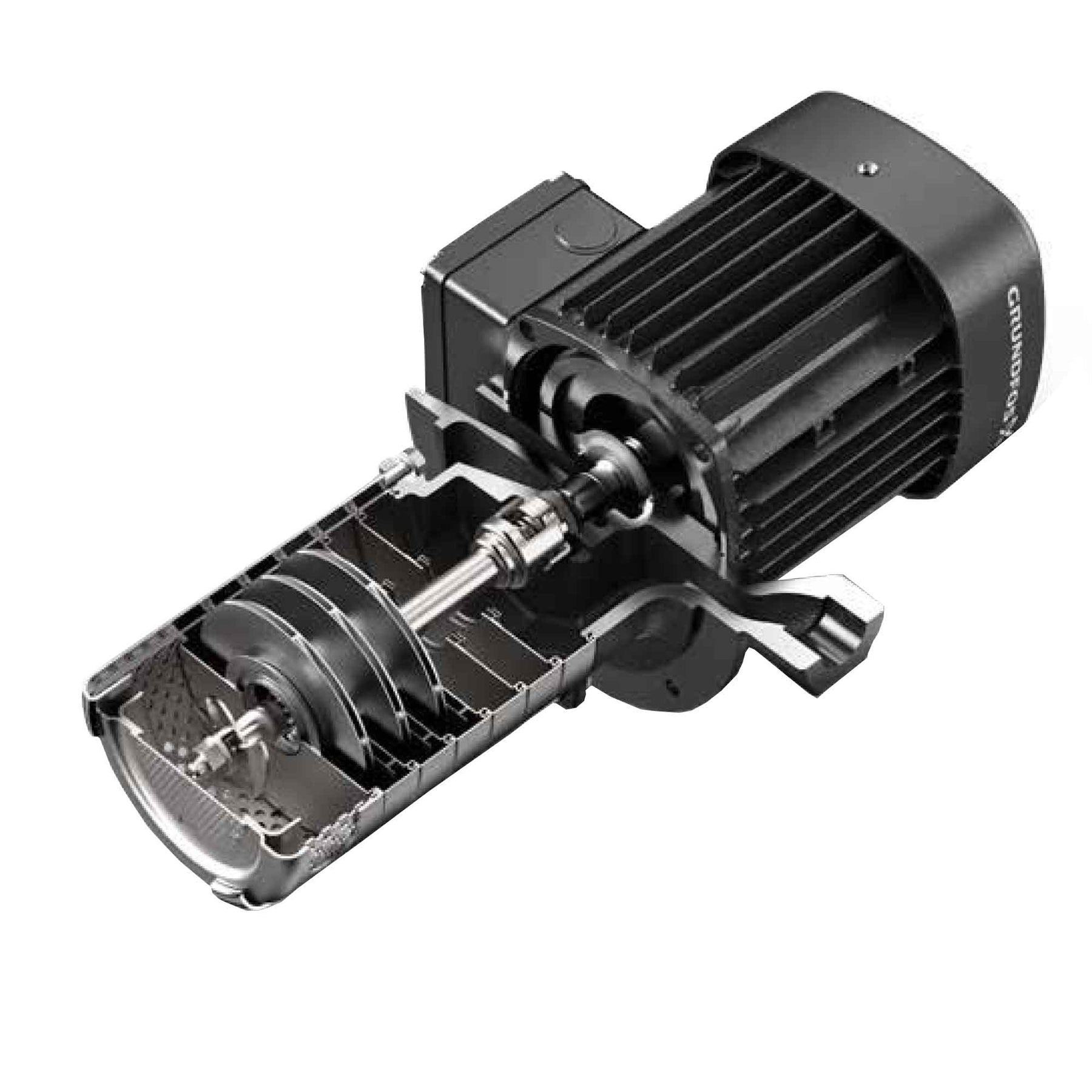

The MTH series of immersible pumps, with the motor and pump integrated into one compact unit, ensures easy installation. Available in both cast iron and stainless steel options, the MTH range offers flexibility with various immersible lengths to accommodate diverse flow and pressure needs. Standard dual frequency of 50/60 Hz enhances versatility. Ideal for machine tool, wash & clean, and chiller applications, the MTH range provides efficient performance across a range of industrial tasks.
Features:
Pump Capabilities:
- Flow rate: max 25 m³/h (417 l/min)
- Head: max 100 m
- Motor: 0.55-4 kW
- Liquid temp.: : -10 °C to +90 °C
- Pump sizes: 5
Motor:
- Standard IE3 motor available for global voltage with single and three-phase motors. Motor protection directly from Klixon or PTC
Seal solution:
- Grundfos offers a wide range of mechanical shaft seals with different seal faces such as Silicon Carbide, Carbon and Tungsten Carbide to handle almost any industrial liquid.
Materials:
- Available in cast iron or stainless steel, depending on the application
Variable length:
- To reach the exact depth of tank, the immersible length can be extended up to 334 mm, depending on pump size
Inlet:
- Equipped with a suction strainer to safeguard against large solid particles entering and harming the pump, ensuring its longevity. The passage size in both the strainer and the impeller varies depending on the pump size. Additionally, a special priming screw enables operation with liquid levels as low as 25 mm.
