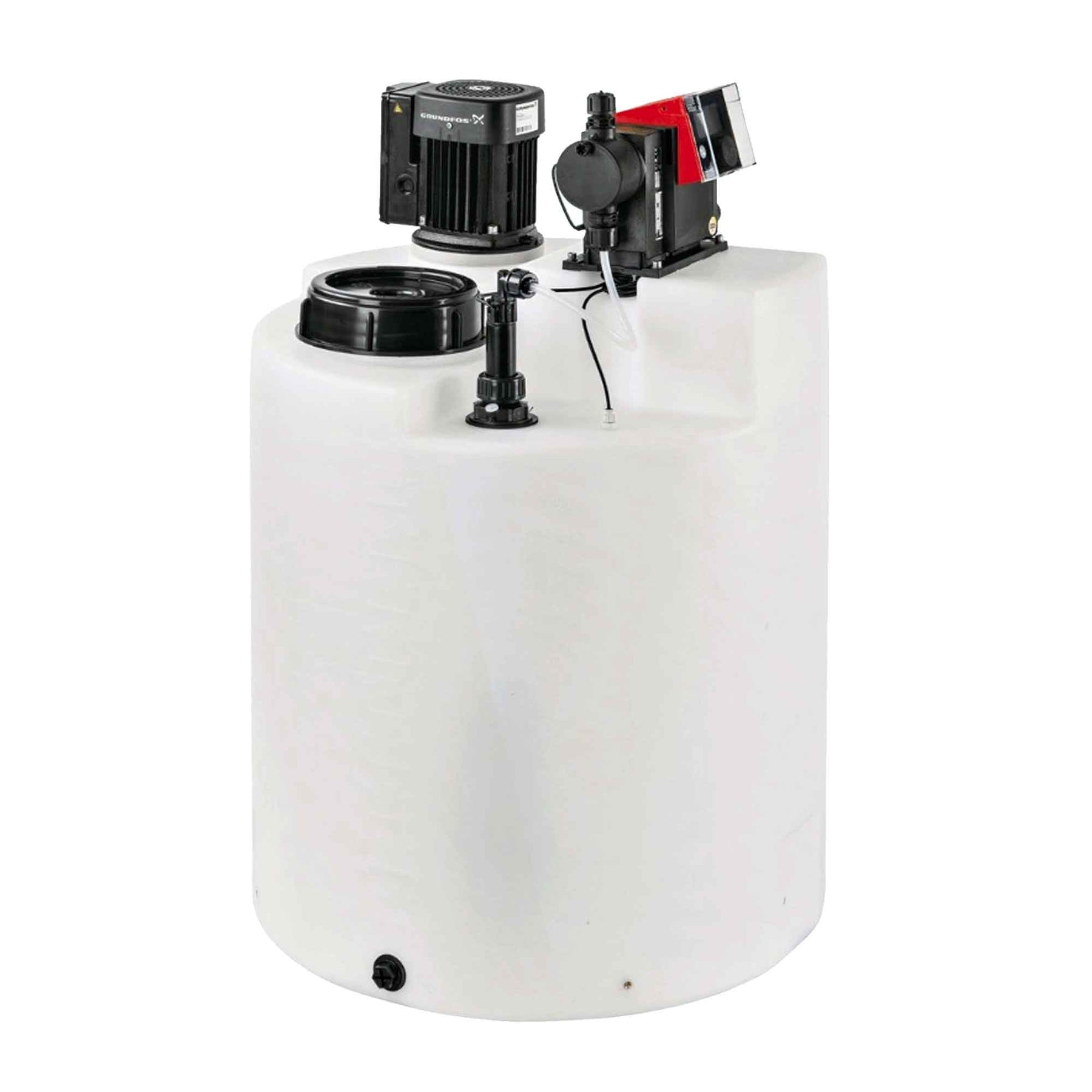

Grundfos DTS Dosing Tank Station
Dosing is a precision task crucial in chemical and process engineering, as well as water treatment. It necessitates precise adjustment of the pump and its accessories to match the process parameters of the specific application. DIGITAL DOSING™ pumps excel in delivering optimal performance in these application fields.
Due to their easy installation, DTS dosing tank stations are the preferred choice for economic efficiency when adding liquids such as coagulants, disinfectants, or neutralizing agents to a process in a precise and controlled manner.
DTS dosing tank stations are designed for storing and dosing liquids, offering flexibility with numerous configuration options to meet various dosing requirements. Utilizing high-quality materials, DTS dosing tank stations can handle a wide range of dosing liquids, with the option to adapt material selection based on configuration needs.
Components and features:
- Chemically resistant tank made of UV-stabilized, semitransparent or black polyethylene, in 6 sizes from 60 to 1000 L, with embossed litre scale and PE screw cover
- PE collecting tray
- Handheld mixer or electric stirrer (230 V, 50 Hz) with level switch for dry-running protection
- Rigid suction lance or foot valve made of PE, with 2-step level switch for dry running protection, suction line to the dosing pump
- PVC or PP injection unit with G 1/2 process connection
- PE or PVC discharge line (10 m)
- Drain valve
- Filling armature with ball valve (for all tank sizes) or dissolving hopper (from 200 l)
- Multi-function valve
Applications:
- Dosing of biocides and inhibitors into cooling water
- Dosing of lyes and acids for pH regulation
- Dosing of coagulants, such as ferric(II)chloride or ferric (III) chloride, for waste water treatment
- Dosing of hypochlorite
- Dosing of cleaning agents and disinfectants (CIP, cleaning machines)
