Graco

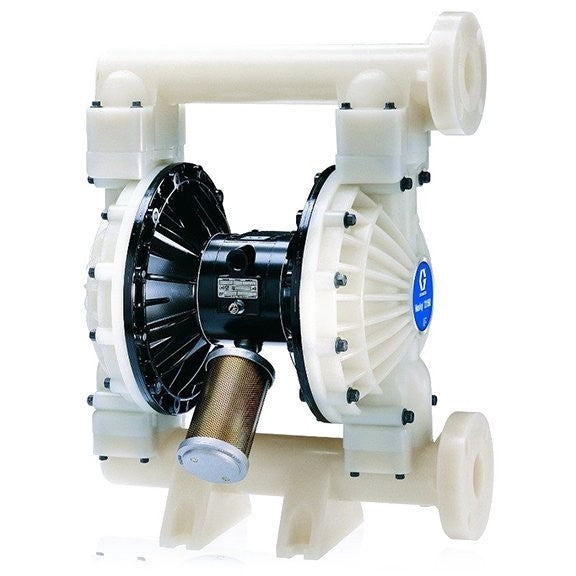

DF2777 - Husky 2150 Double Diaphragm Pump 2", 150 gpm
Quantité:
Polypropylene
Fluid Section Material
2 Inch, 150 gpm (51mm, 568 lpm)
Pump Inlet/Outlet Size
Aluminum Standard Air Valve w/Buna Seals
Center Section
Polypropylene End Flange ANSI/DIN
Porting
Buna
Seats
Buna
Balls
Buna
Diaphragms
N/A
Manifold O-Rings
The Husky 2150 air-operated diaphragm pump is equipped with a stall-free low pulsation air valve, ensuring smooth and rapid changeover. With an overall improvement in efficiency of up to 40%, it offers the highest fluid flow rate in its class. Its extended diaphragm life, lasting up to 5 times longer than other air-operated diaphragm pumps, coupled with an expanded material offering, allows it to handle a wide range of applications. Featuring fewer parts than industry peers, its complete air valve is externally accessible for quick and easy servicing without removing the pump. Additionally, it boasts 2-inch ANSI end-porting, fluid flow of up to 150 gpm (568 lpm), fluid pressure up to 120 psi (8.4 bar, 0.84 MPa), lube-free operation, and an epoxy-coated air section for durability in tough environmental conditions.
Configuration Number
- 2150P-A01AP2BNBNBN
Power Source
- Air Operated
Certification
- No Certification
