Graco

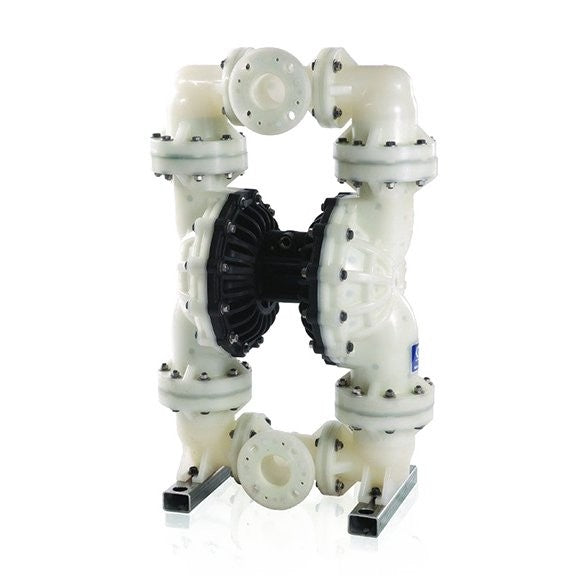

652404 - Husky 3300 Double Diaphragm Pump 3", 300 gpm
Quantité:
Polypropylene
Fluid Section Material
3 Inch, 300 gpm (80mm, 1136 lpm)
Pump Inlet/Outlet Size
Polypropylene Standard Air Valve (NPT)
Center Section
Polypropylene Center Flange ANSI/DIN
Porting
Polypropylene
Seats
PTFE
Balls
PTFE
Diaphragms
PTFE
Manifold O-Rings
The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve for smooth changeover and a one-piece center section to prevent leaks and reduce maintenance. It boasts overall improved efficiency (up to 40% more efficient) and the highest fluid flow rate in its class. With up to 5 times longer diaphragm life compared to other pumps, it offers expanded material options for various applications and is available in ATEX configuration. With flow rates up to 300 gpm (1,135 lpm) and a modular stall-resistant air valve design, it's part of the complete 3" family of pumps.
Configuration Number
- 3300P-P01AP1PPPTPTPT
Power Source
- Air Operated
Certification
- No Certification
