Graco

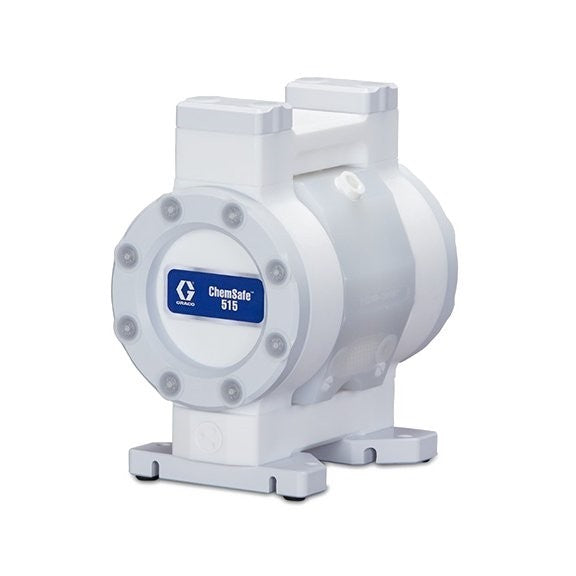

24X495 - ChemSafe 515 Double Diaphragm Pump 0.5", 16 gpm
UHMWPE
Fluid Section Material
1/2 Inch, 16 gpm (13mm, 61 lpm)
Pump Inlet/Outlet Size
Polypropylene Standard Air Valve (NPT)
Center Section
UHMWPE Standard Porting (NPT)
Porting
UHMWPE
Seats
PTFE
Balls
Buna
Diaphragms
PTFE
Manifold O-Rings
Graco's ChemSafe pumps boast PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, ensuring their suitability for handling corrosive and abrasive chemicals. With no exposed metals and the ability to be configured in various materials, they meet a wide range of abrasion, temperature, and chemical compatibility needs. Additionally, these pumps feature dead-head capability and achieve high flow rates while minimizing both air consumption and operational noise, making them an efficient and quiet choice for industrial applications. Key features include:
- Max flow rate of 16.6 gpm (63 lpm)
- High quality machined design provides a precision fit and superior chemical containment compared to molded pumps
- Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life, and offers clean, safe operation
- Removable air motor offers easy and intuitive maintenance ensuring maximum pump performance and availability
- Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater
Configuration Number
- 515CSUH-P01AUH3UHPTBNPT
Power Source
- Air Operated
Certification
- No Certification
