Graco

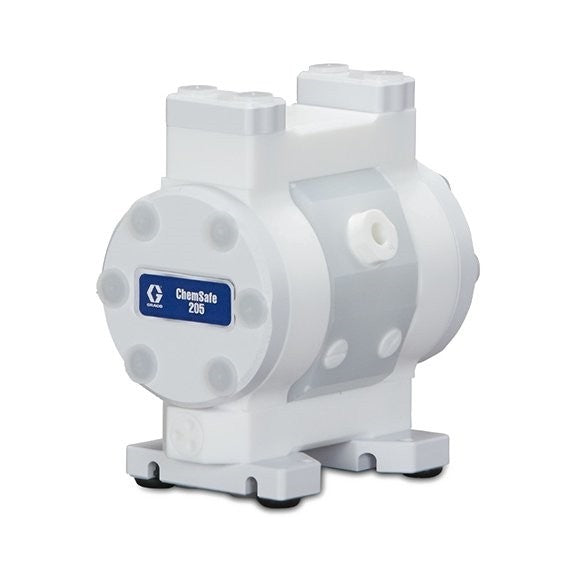

24X429 - ChemSafe 205 Double Diaphragm Pump 0.25", 3.7 gpm
PTFE
Fluid Section Material
205 - 1/4 Inch, 3.7 gpm (6mm, 14 lpm)
Pump Inlet/Outlet Size
Polypropylene Standard Air Valve (NPT)
Center Section
PTFE Standard Porting (NPT)
Porting
PTFE
Seats
PTFE
Balls
PTFE Overmolded
Diaphragms
PTFE
Manifold O-Rings
Graco's ChemSafe pumps are engineered with PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, making them exceptionally well-suited for handling corrosive and abrasive chemicals. With no exposed metals, these pumps offer enhanced durability and can be customized with various materials to fulfill a wide range of abrasion, temperature, and chemical compatibility needs. Furthermore, they are dead-head capable and able to achieve high flow rates, all while minimizing air consumption and operational noise, ensuring efficient and quiet operation. Additional key features include:
- Max flow rate of 3.6 gpm (14 lpm)
- High quality machined design provides a precision fit and superior chemical containment compared to molded pumps
- Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation
- Removable air motor offers easy and intuitive maintenance ensuring maximum pump performance and availability
- Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater
Configuration Number
- 205CSPT-P01APT3PTPTPOPT
Power Source
- Air Operated
Certification
- No Certification
