Graco

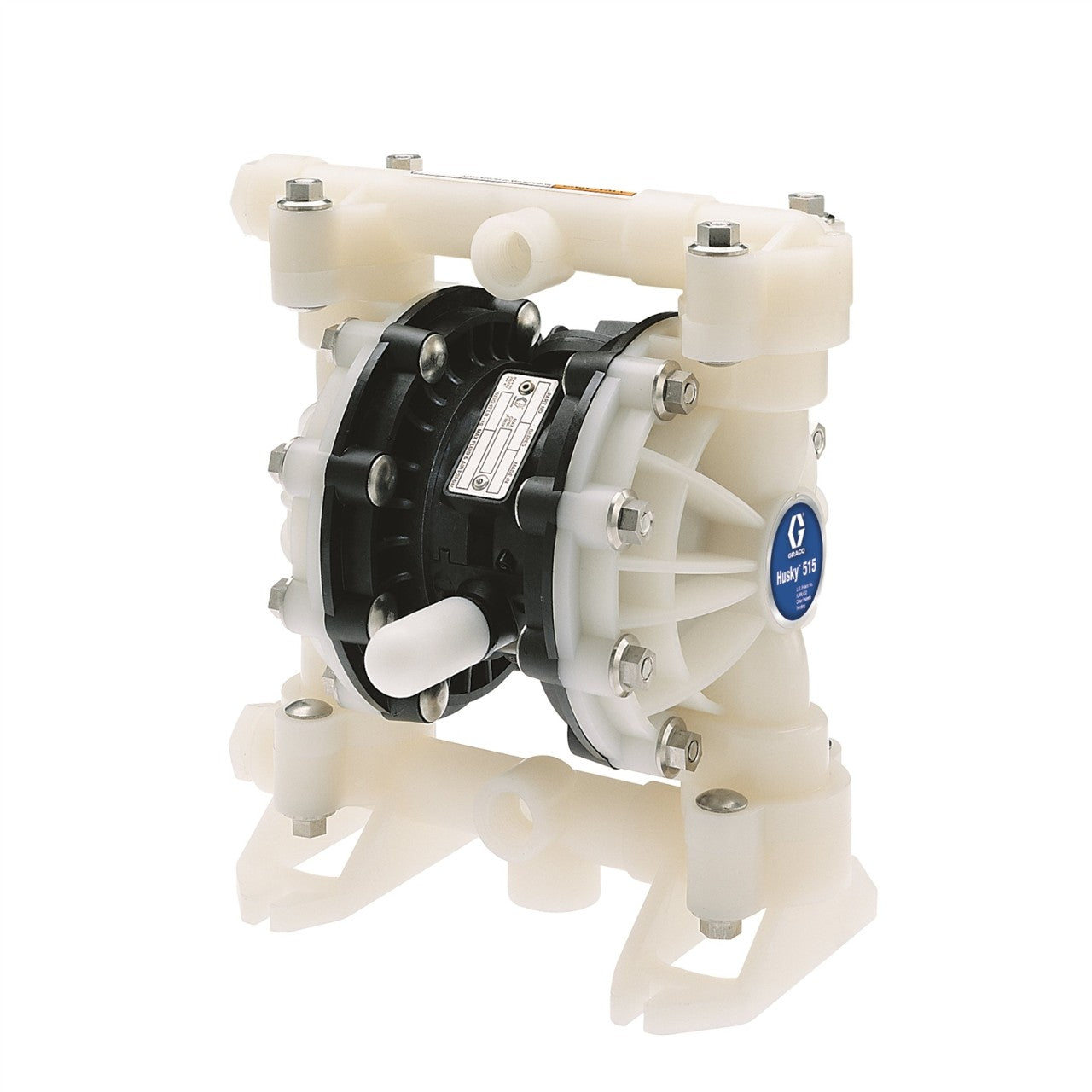

24N096 - Husky 515 Double Diaphragm Pump 0.5", 15 gpm
Quantité:
Acetal
Fluid Section Material
1/2 Inch, 15 gpm (13mm, 57 lpm)
Pump Inlet/Outlet Size
Polypropylene Standard Air Valve (NPT)
Center Section
Acetal Standard Porting (NPT)
Porting
Acetal
Seats
PTFE
Balls
PTFE Overmolded
Diaphragms
PTFE
Manifold O-Rings
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve for smooth and rapid changeover, along with center and end porting options. Additionally, it boasts a bolt-through fluid cover design, ensuring no leaks and enhancing safety and reliability. This pump also offers numerous advantages such as no mechanical seals to cause fluid leaks or failures, quiet operation at less than 85 dBa with remote muffler capability for lower noise levels, easy-to-service air valve and ball checks, and the ability to operate on as little as 20 psi (1.4 bar, 0.14 MPa). With a split manifold option to pump multiple fluids without mixing, delivery of up to 15 gpm (56.7 lpm), and a reliable air valve for years of dependable performance, the Husky 515 is an exceptional choice for various applications.
Configuration Number
- 515AC-P01AAC3ACPTPOPT
Power Source
- Air Operated
Certification
- ATEX
