The Small Pump Selection Matrix: 4 Key Factors for Finishing Engineers

The Small Pump Selection Matrix: 4 Key Factors for Finishing Engineers

Graco Husky AODD pumps offer versatile solutions for liquid finishing. Key factors: fluid compatibility, flow rates, operational environment, and maintenance. HMFT provides tailored expertise for optimal selection.

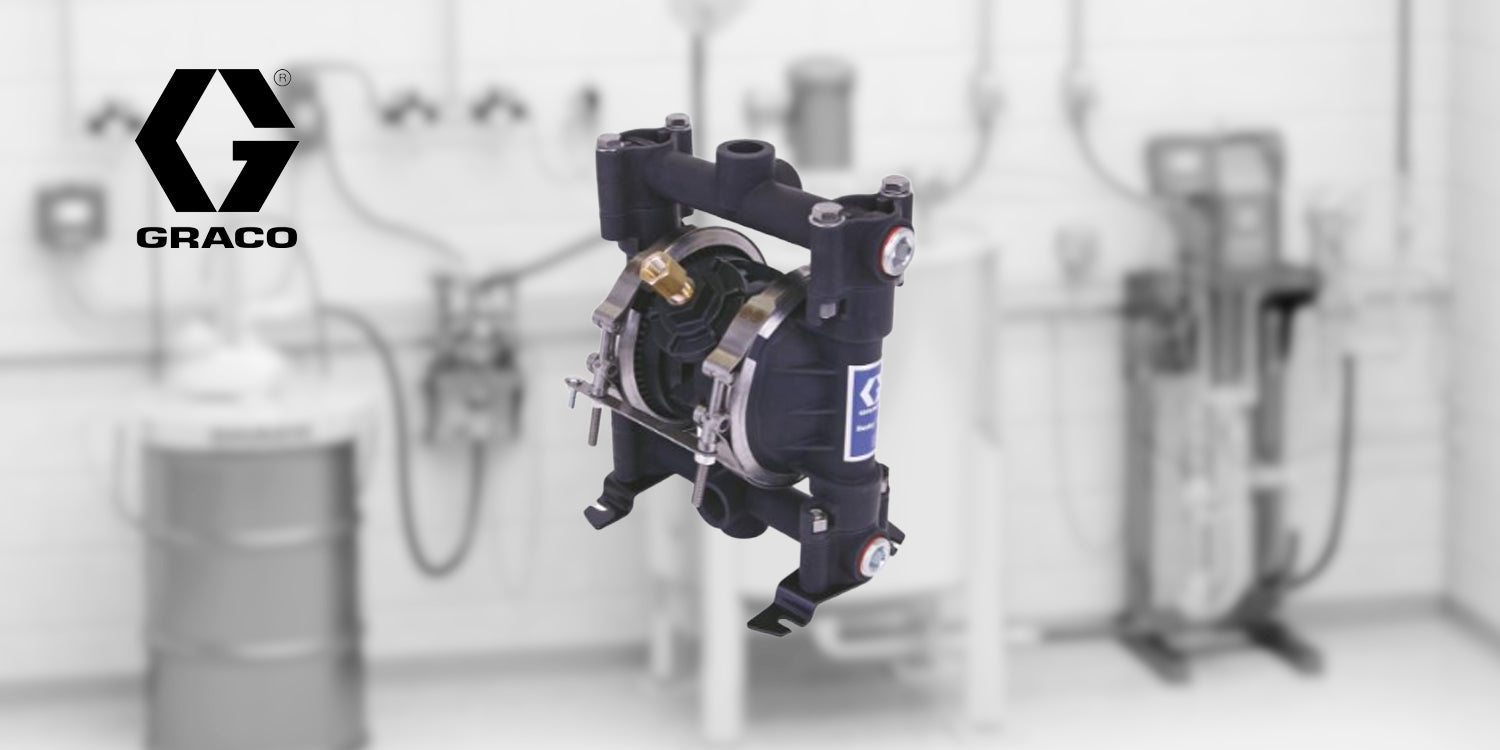

Selecting the right Graco Husky AODD pump for liquid finishing applications requires balancing technical requirements with operational realities. For finishing engineers tasked with drum-to-pail transfers, spray booth supply systems, or precision coating applications, this decision matrix cuts through the complexity to deliver actionable insights.

Factor 1: Fluid Characteristics

The Chemical Compatibility Imperative

Graco’s Chemical Compatibility Guide reveals critical material pairings:

Coating Type Recommended Husky Materials Avoid
Waterborne Paints Polypropylene body, Santoprene® diaphragms Aluminum components
Acid Etch Primers PVDF fluid section, PTFE balls Standard polypropylene
UV-Cured Coatings Conductive polypropylene, Viton® seats Non-ATEX configurations


Factor 2: Flow Dynamics

Matching Pump Size to Process Needs

Husky models demonstrate distinct performance profiles:

  • Husky 1050 (1”): 189 L/min max flow for high-volume paint supply lines
  • Husky 1590 (½”): 1.96 L/cycle for precision additive dosing
  • Husky 716 (¾”): 61 L/min ideal for mobile touch-up stations

Factor 3: Operational Environment

Temperature and Duty Cycle Considerations

Graco’s testing data shows performance thresholds:

  • Standard polypropylene bodies: -18°C to 93°C
  • PTFE diaphragms: Maintain flexibility at -40°C
  • Hastelloy® configurations: Withstand 204°C process temps

Factor 4: Maintenance Reality Check

Design Features That Reduce Downtime

  • Externally serviceable air valves (30% faster rebuilds)
  • Stall-free operation prevents diaphragm damage during line blockages
  • Four-bolt joint design enables in-place seal replacements

The HMFT Advantage

Our finishing system experts apply this matrix daily to create tailored solutions:

  1. On-site fluid compatibility testing
  2. Cycle rate calculations for optimal diaphragm life
  3. ATEX-compliant configurations for explosive atmospheres
  4. Retrofit kits for legacy pump replacements

FAQ

Q: Can Husky pumps handle abrasive metallic flake coatings?

A: Yes – the Husky 1050 with ceramic balls and hardened seats withstands 25% solids loading.

Q: What’s the minimum flow rate for precision additive dosing?

A: The Husky 1590 achieves 0.5 L/min with Graco’s precision air regulator kit.

Q: How often should diaphragms be replaced in 24/7 operation?

A: PTFE diaphragms typically last 3-6 months in continuous service – HMFT’s predictive maintenance program optimizes changeouts.

Q: Can we retrofit Husky pumps to existing Wilden systems?

A: Absolutely – 85% of Husky models feature direct bolt-on compatibility with common flange patterns.

Q: What certification documentation comes with ATEX pumps?

A: Full EC-type examination certificates and material compliance statements are provided.

Take the Guesswork Out of Pump Selection

Ready to optimize your liquid finishing processes? Contact HMFT’s application engineers for a free pump audit and receive a customized selection matrix for your operation.
